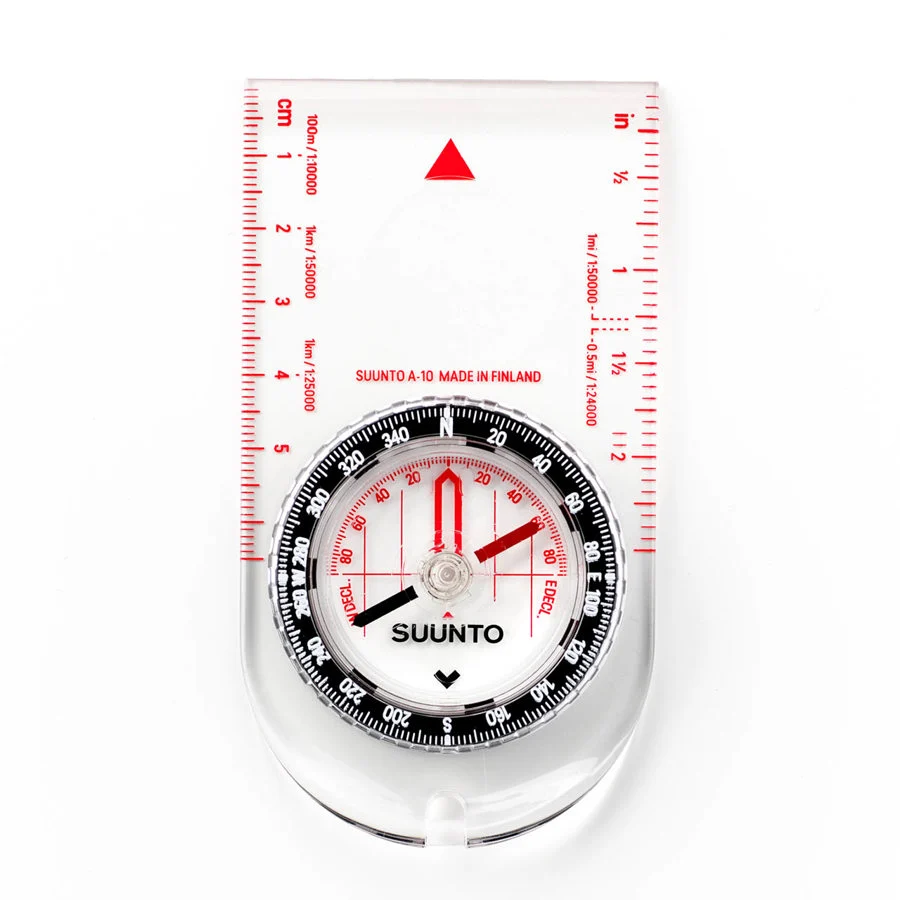

MINIMALISTIC BASEPLATE COMPASS FOR HIKERS AND SCOUTS
Fast, simple and accurate, A-10 baseplate compasses are quick to learn and ideal for navigating with a map and compass. For calculating the distances, A-10 has both metric and imperical scales printed in red to stand out on topographic map.
The Earth’s magnetic field does not flow evenly between the magnetic poles along the surface of the planet. To overcome this, A-10 has two variants with needles balanced for either the northern or southern hemisphere.
Specifications
| Measurements | 56 x 104 x 10 mm / 2.2 x 4.09 x 0.39 “ |
|---|---|
| Weight | 30 g / 1.06 oz |
| Bezel material: | Plastic |

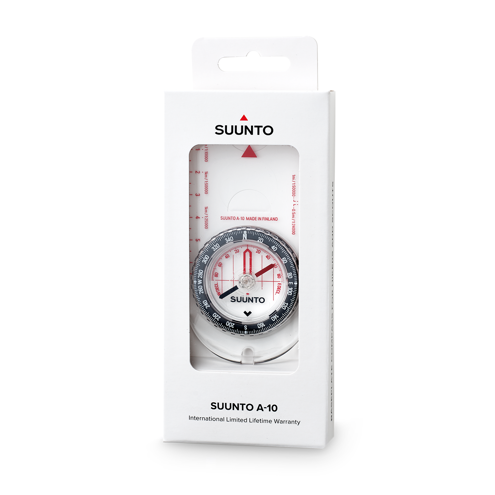

| What’s in the box? | Suunto A-10 NH Compass, lanyard, Quickrelease, Quick Guide |
| Country of manufacture | FI |
- High grade steel needle with jewel bearing
- Balanced for northern hemisphere
- Fixed declination correction scale
- Liquid filled capsule for stable operation

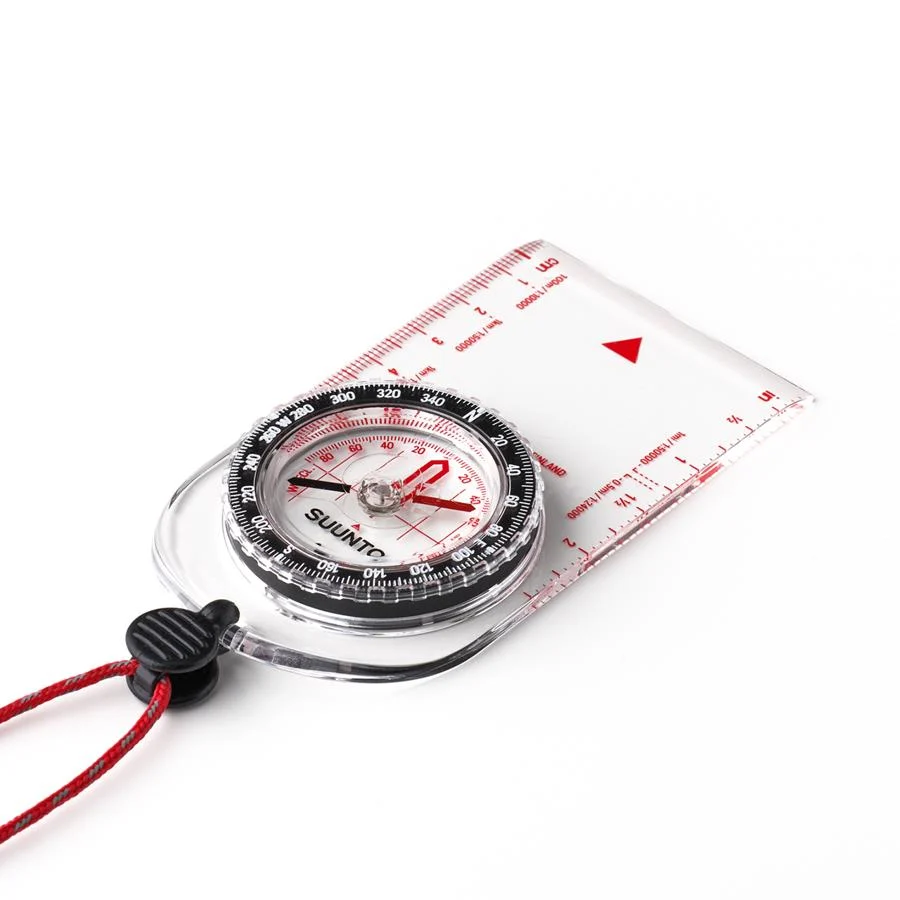

- Detachable snap-lock lanyard. Easy to detach for working with the map
- Suunto limited lifetime warranty
- Made in Finland
Technical Details
General
| Bezel material: | Plastic |
|---|---|
| Metric scales | cm with distance helpers |
| Imperial scales | inch with distance helpers |
| Balanced for northern hemisphere | |
| Declination correction | fixed scale |
| Weight | 30 g / 1.06 oz |
| Water resistance | insensitive to water pressure |
| Battery type | no battery required |
| Lanyard quick release | |
| Attachment | lanyard |
| Direction scale | degrees |
|---|---|
| Needle | high grade steel |
| Liquid filled and jewel bearing | |
| Bearing lock with orienting indicator | |
| Compass accuracy | 2.5° |
| Compass resolution | 2° |
| Operating temperature | -30° C to +60° C / -22° F to +140° F |
|---|---|
| Storage temperature | -30° C to +60° C / -22° F to +140° F |
