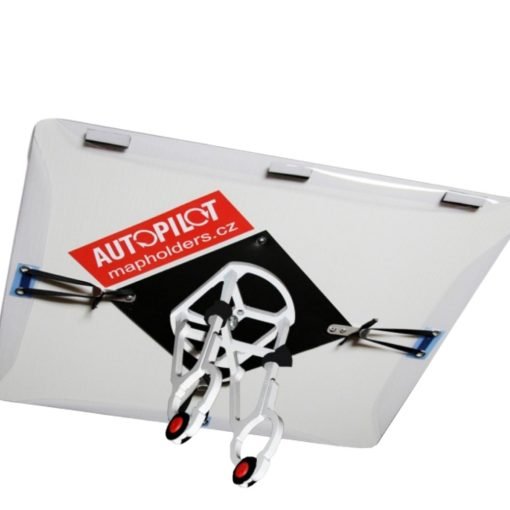

The AUTOPILOT PilotOne SH35 features a large 350 × 305 mm board. AUTOPILOT describes the 35 board as popular within the MTBO community, with a size that allows riders to manipulate an A3 map easily with one hand while riding. The larger board is also frequently used for Trail Quest races, where larger maps may be folded several times.
The SH – Standard Height base positions the map 11 cm above the handlebar axis. Because of the size of the SH35 board, AUTOPILOT specifies that the bike’s handlebars should be at least 70 cm wide.
Key Features
- Large 350 × 305 mm board
- Popular board size within the MTBO community
- Designed for easy one-handed A3 map handling while riding
- Also frequently used for Trail Quest races
- Suitable for larger, repeatedly folded maps
- SH – Standard Height PilotOne base
- Map positioned 11 cm above the handlebar axis
- 360° rotating map board
- Choose 31.8 mm or 35 mm handlebar fitting
- Standard PilotOne base with 50 mm inner width
- Requires handlebars at least 70 cm wide
- White map board with black base
- English assembly and user instructions supplied
Choose the Correct Handlebar Diameter
Select the PilotOne base that matches the diameter of your handlebar where the map holder will be fitted:
31.8 mm
35 mm
Please check your handlebar diameter before ordering.
Check Your Stem Width
This map holder is supplied with the Standard PilotOne base, which has a 50 mm inner width and is designed for a stem head up to approximately 45 mm wide.
AUTOPILOT also produces a wider 57 mm base, shown in the comparison image, but this is not currently supplied by Compass Point. Please check your bike before ordering if you are unsure about the available space around the stem.
Important – Check Your Handlebar Width
Due to the larger 350 × 305 mm board, AUTOPILOT specifies that the SH35 should be used with handlebars at least 70 cm wide. Please check your handlebar width before ordering.
Technical Details
| Specification | Details |
|---|---|
| Brand | AUTOPILOT |
| Product range | PilotOne |
| Model | SH35 |
| Base style | SH – Standard Height |
| Board size | 350 × 305 mm |
| Recommended map format | A3 / larger repeatedly folded maps |
| Map height above handlebar axis | 11 cm |
| Board rotation | 360° |
| Handlebar diameter | 31.8 mm or 35 mm |
| Minimum handlebar width | 70 cm |
| Base supplied | Standard PilotOne base |
| Base inner width | 50 mm |
| Recommended maximum stem-head width | Approx. 45 mm |
| Board colour | White |
| Base colour | Black |
| Use | MTBO / Trail Quest / cycle navigation |
| Instructions | English manual supplied |
Product Manual
▸Installation & Setup
The PilotOne map holder is supplied with the components required to attach the board to the base. Follow the supplied AUTOPILOT instructions when assembling and fitting the map holder.
The retaining rings must be adjusted correctly for the thickness around each handlebar mounting point. The manufacturer specifies:
- Small – up to 12 mm: 7 of 9 teeth locked, with one visible tooth free on both parts.
- Big – up to 13.5 mm: all teeth locked.
- At least 5 teeth must be engaged.
The map board rotates through 360° once installed. Check that brake and gear cables have sufficient clearance and do not interfere with the map holder or steering.
A full English AUTOPILOT assembly and user manual is supplied with the map holder.
▸ Care & Maintenance
Remove the transparent map cover when it becomes dirty or dusty and clean the cover and base using a damp, soft cloth with warm soapy water. Check the condition of screws and rivets regularly.
Protect the transparent cover against scratches and avoid writing on it with a felt-tip pen.
▸ Manufacturer Warranty
AUTOPILOT states a:
3-year warranty on the base
2-year warranty on the board
The manufacturer’s warranty does not cover damage caused by crashes or misuse.
