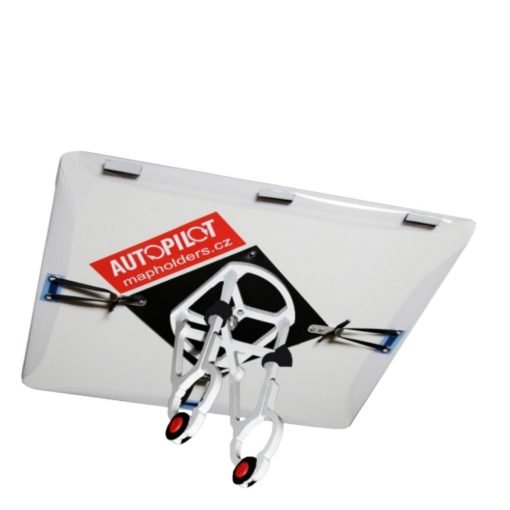

The AUTOPILOT PilotOne SH A4 is the compact board option in the PilotOne Standard Height range. Its 305 × 240 mm board is designed for riders using A4 maps, including events or rides where several A4 sheets are used.
The SH – Standard Height base positions the map board close to the handlebars. AUTOPILOT’s current manual specifies a maximum height of 112 mm above the handlebar axis. The board can rotate through 360°, allowing you to orientate the map while riding.
Key features
- 305 × 240 mm board suited to A4 maps
- SH – Standard Height PilotOne base
- Maximum height 112 mm above the handlebar axis
- 360° rotating map board
- Choose 31.8 mm or 35 mm handlebar fitting
- Standard PilotOne base with 50 mm inner width
- White map board with black base
- Designed for mountain bike orienteering and cycle navigation
- English assembly and user instructions supplied
Choose the correct handlebar diameter
Select the PilotOne base that matches the diameter of your handlebar where the map holder will be fitted:
31.8 mm
35 mm
Please check your handlebar diameter before ordering.
Check your stem width
This map holder is supplied with the Standard PilotOne base, which has a 50 mm inner width and is designed for a stem head up to approximately 45 mm wide.
AUTOPILOT also produces a wider 57 mm base, shown in the comparison image, but this is not currently supplied by Compass Point. Please check your bike before ordering if you are unsure about the available space around the stem.
Technical details
| Specification | Details |
|---|---|
| Brand | AUTOPILOT |
| Product range | PilotOne |
| Model | SH A4 |
| Base style | SH – Standard Height |
| Board size | 305 × 240 mm |
| Recommended map format | A4 |
| Maximum height above handlebar axis | 112 mm |
| Board rotation | 360° |
| Handlebar diameter | 31.8 mm or 35 mm |
| Base supplied | Standard PilotOne base |
| Base inner width | 50 mm |
| Recommended maximum stem-head width | Approx. 45 mm |
| Board colour | White |
| Base colour | Black |
| Use | MTBO / mountain bike orienteering / cycle navigation |
| Instructions | English manual supplied |
Product Manual
▸Installation & Setup
The PilotOne map holder is supplied with the components required to attach the board to the base. Follow the supplied AUTOPILOT instructions when assembling and fitting the map holder.
The retaining rings must be adjusted correctly for the thickness around each handlebar mounting point. The manufacturer specifies:
- Small – up to 12 mm: 7 of 9 teeth locked, with one visible tooth free on both parts.
- Big – up to 13.5 mm: all teeth locked.
- At least 5 teeth must be engaged.
The map board rotates through 360° once installed. Check that brake and gear cables have sufficient clearance and do not interfere with the map holder or steering.
A full English AUTOPILOT assembly and user manual is supplied with the map holder.
▸ Care & Maintenance
Remove the transparent map cover when it becomes dirty or dusty and clean the cover and base using a damp, soft cloth with warm soapy water. Check the condition of screws and rivets regularly.
Protect the transparent cover against scratches and avoid writing on it with a felt-tip pen.
▸ Manufacturer Warranty
AUTOPILOT states a:
3-year warranty on the base
2-year warranty on the board
The manufacturer’s warranty does not cover damage caused by crashes or misuse.
